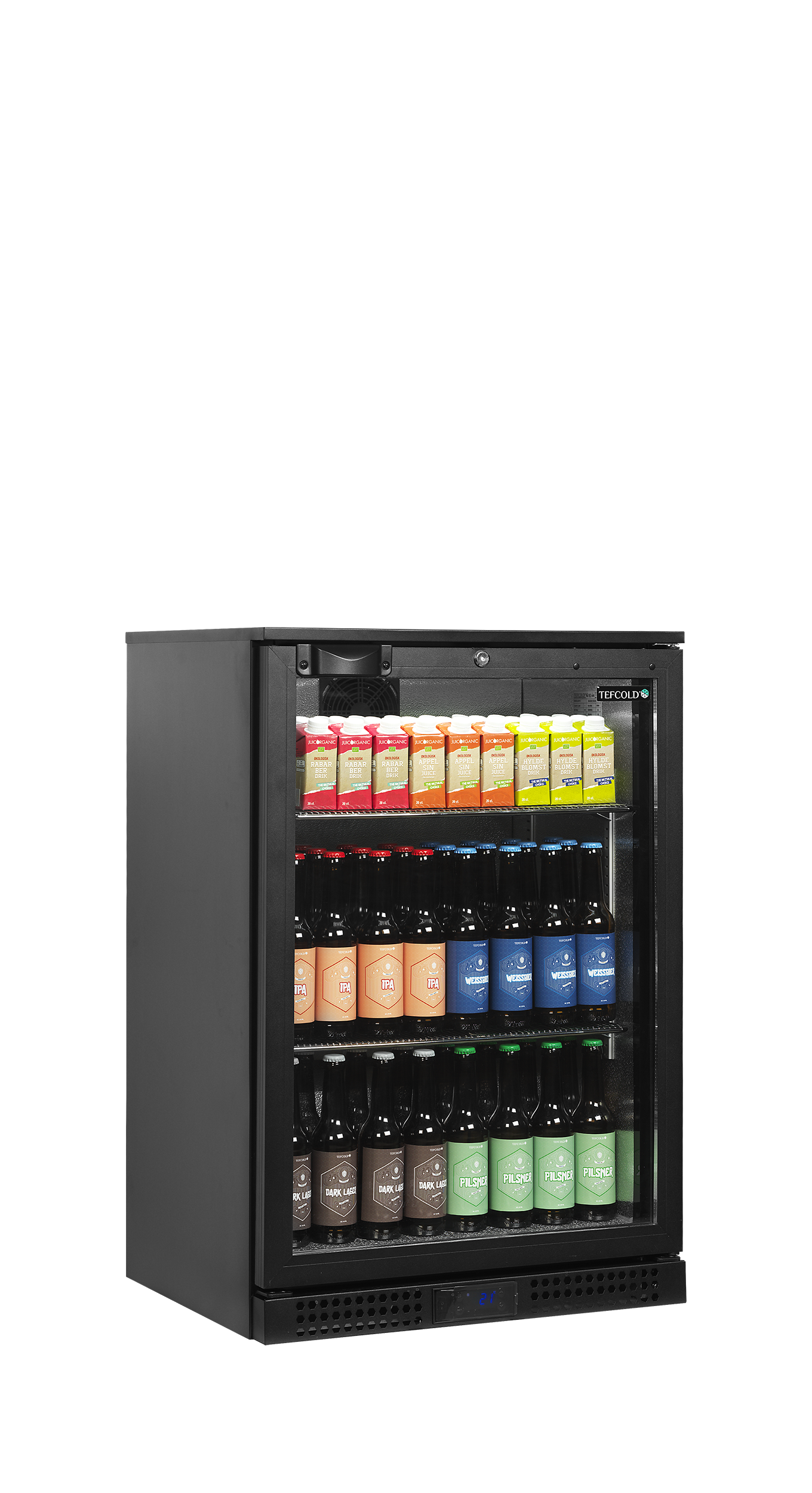

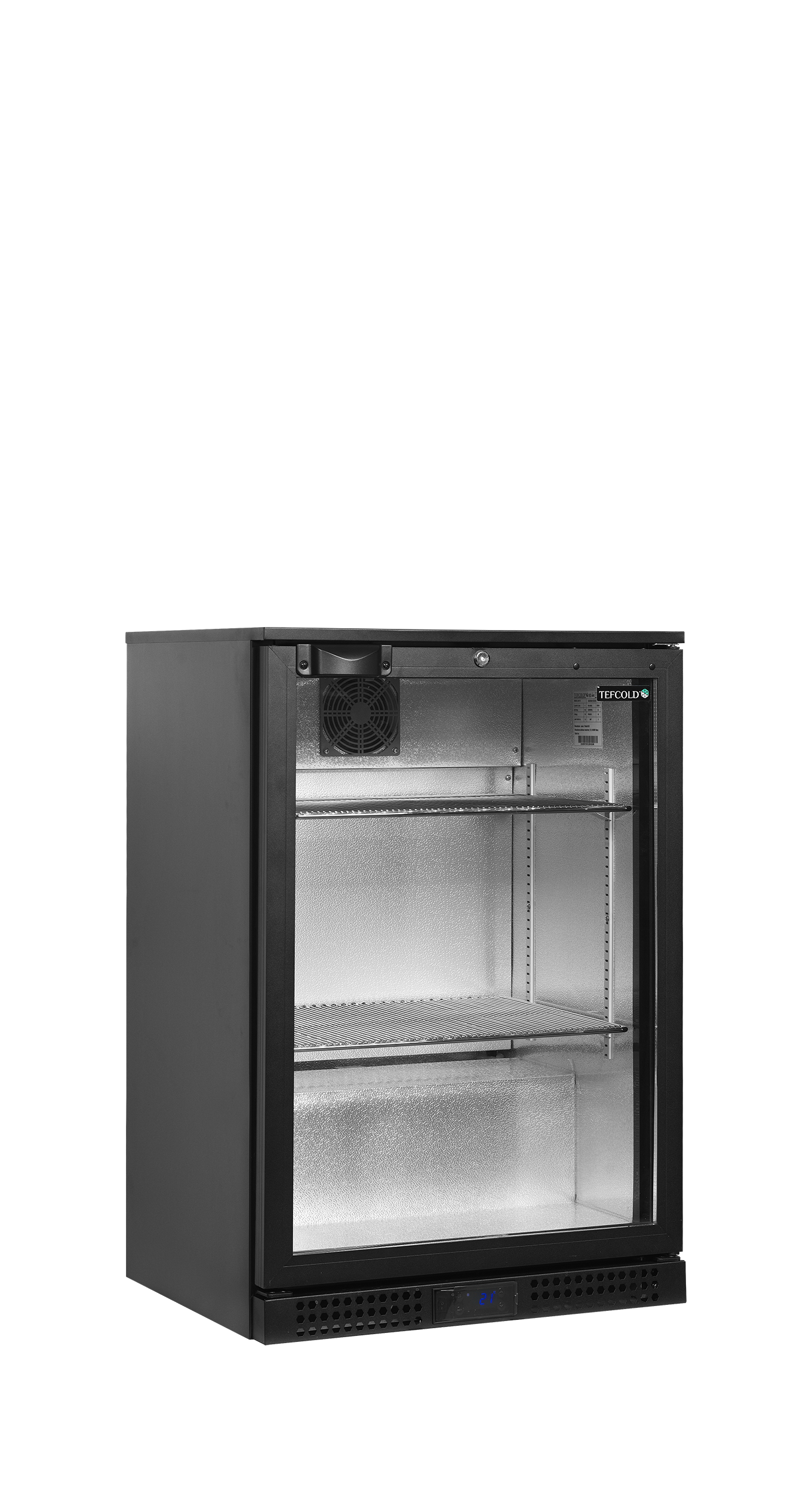

High-quality backbar with low energy consumption
The BA is a range of high-quality backbars. It features aluminium doors and chrome shelves with closely-spaced wires, to give stability and high capacity. Double glazed glass doors offer great product visibility as well as a lower energy consumption. It is available with 1, 2, and 3 doors – choose between hinged or sliding doors. To ensure that the backbar fits into any bar environment, it comes in two heights: 870 mm and 900 mm.
The new range of backbars is highly energy efficient and uses in average 59% less energy compared to the previous models from the same range.
| Gross / Net Weight | 53 / 47 kg |
| 40ft Container Load | 136 pcs |
| GTIN / EAN | 5708181721947 |
| Bottles 330 ml | 96 pcs |
| Bottles 500 ml PET | 96 pcs |
| Cans 330 ml | 161 pcs |
| Cans 500 ml | 112 pcs |
| Gross / Net Volume | 128 / 118 l |
| Total Display Area | 0.37 m² |
| Temperature Range | +2 to +10 °C |
| Climate Class | 4 |
| Exterior Finish | Black |
| Interior Finish | Stucco aluminium |
| Door No & Type | 1 hinged glass door |
| Door Reversible | Yes |
| Shelves No & Type | 2 wire shelves chrome |
| Shelf Color | Chrome |
| Shelf Dimensions | 495×350 mm |
| Feet / Legs | 4 adjustable feet |
| Lock | Yes |
| Interior Light | LED |
| Type of Controller | Electronic |
| Type of Cooling | Ventilated |
| Type of Defrost | Automatic |
| Refrigerant | R600a |
| Refrigerant Charge | 55 g |
| Thermometer | Yes |
| Energy Class | A |
| EPREL No | 1431506 |
| Max Ambient | +30°C, 55% RH |
| Energy Consumption | 0.96 kWh/24h |
| Annual Energy Cons. | 350 kWh/year |
| EEI | 9 % |
| Input Power | 95 W |
| Voltage / Frequency | 220-240/50 V/Hz |
| Noise Level | 44 dB(A) |
| External Dimension (WxDxH) | 600 x 520 x 900 mm |
| Internal Dimension (WxDxH) | 510 x 418 x 734 mm |
| Packed Dimension (WxDxH) | 685 x 575 x 970 mm |
