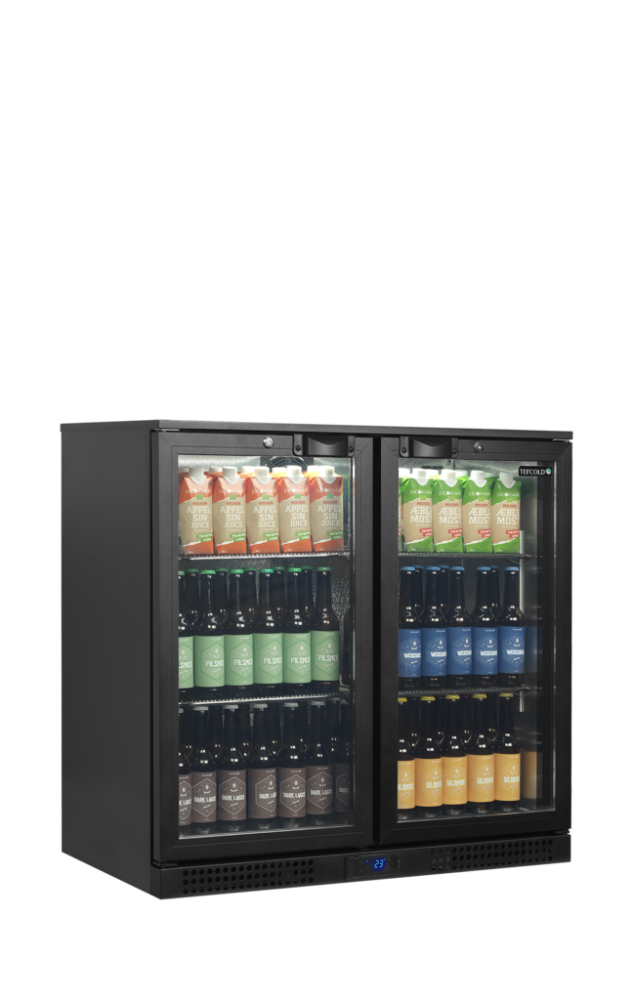

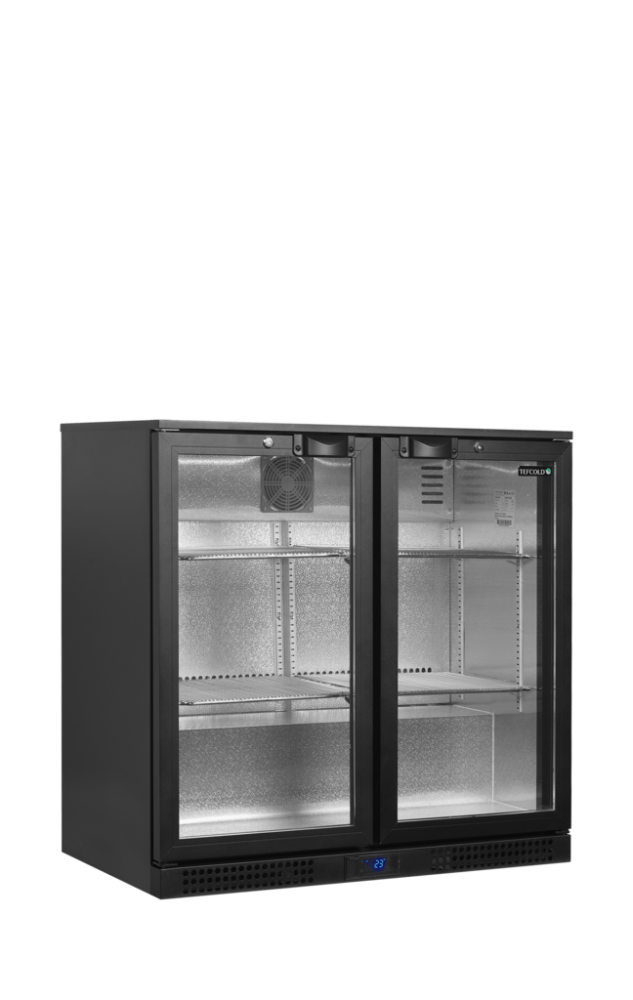

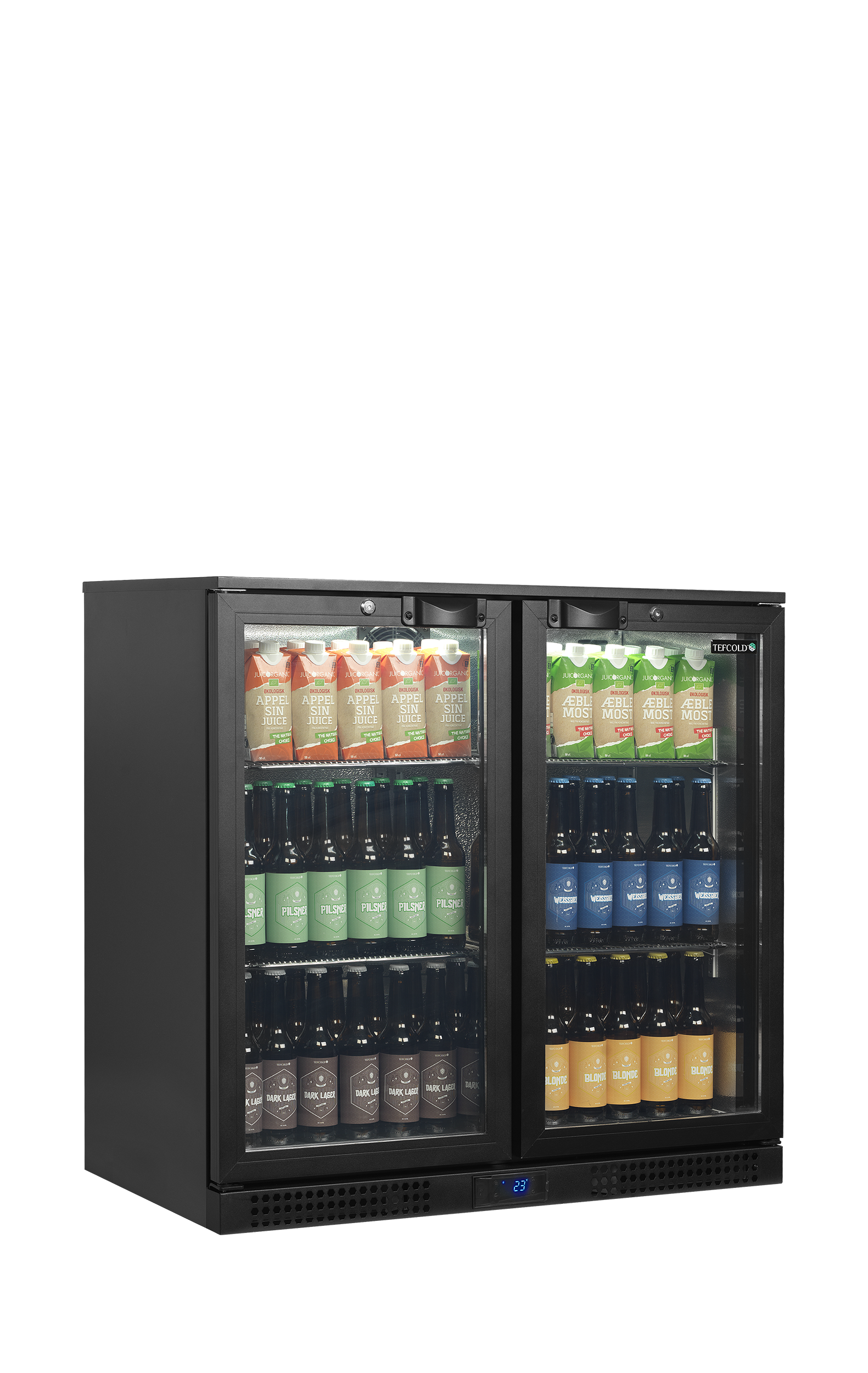

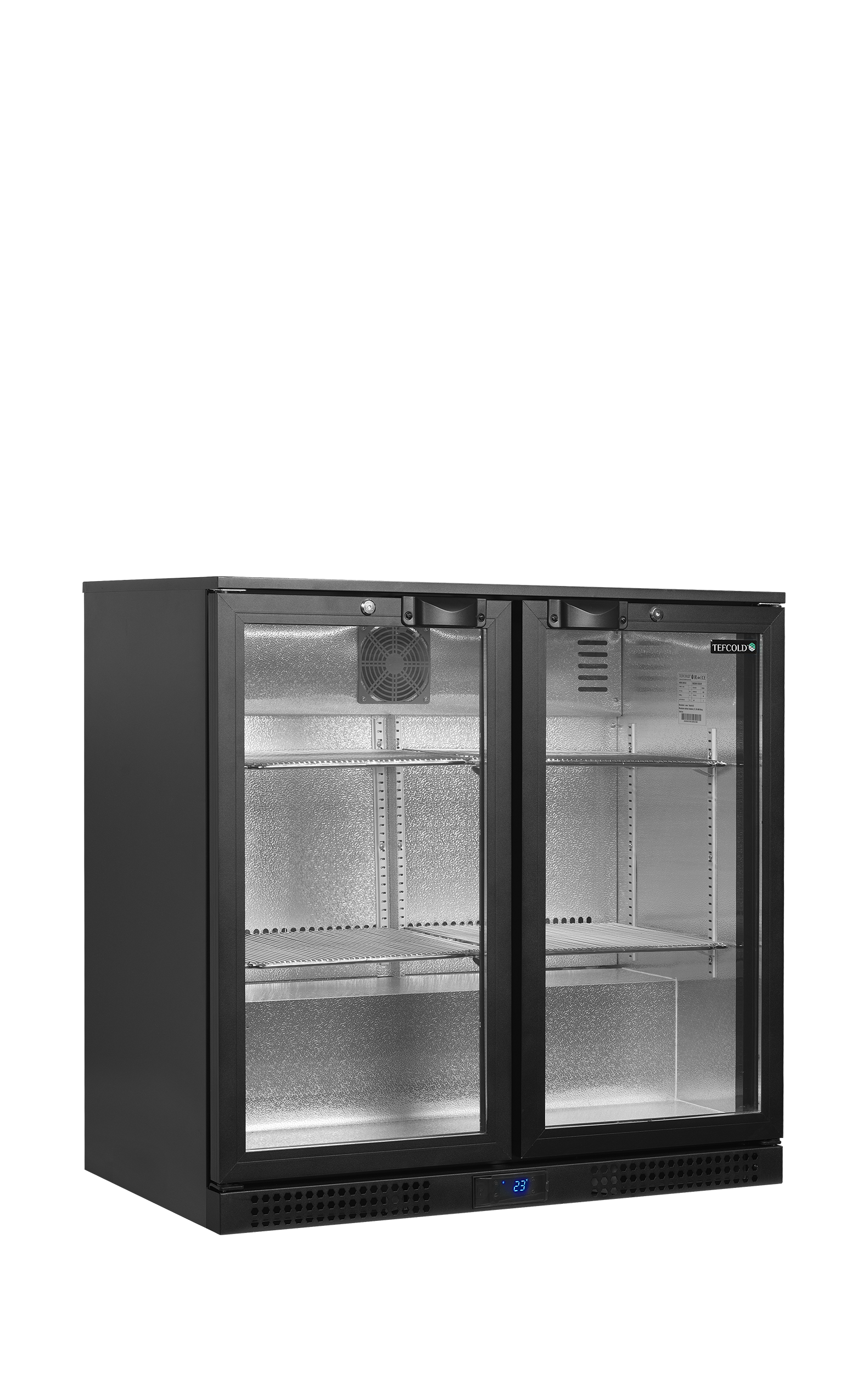

High-quality backbar with low energy consumption

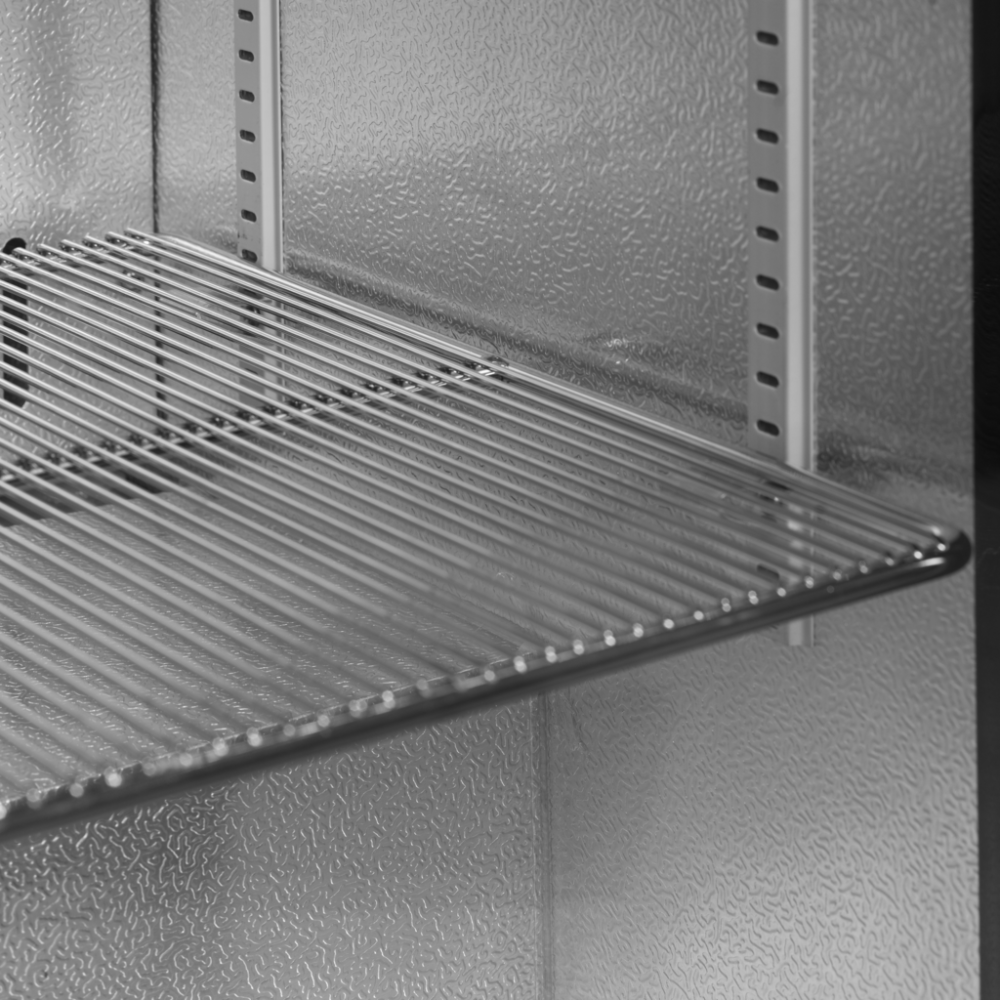

The BA is a range of high-quality backbars. It features aluminium doors and chrome shelves with closely-spaced wires, to give stability and high capacity. Double glazed glass doors offer great product visibility as well as a lower energy consumption. It is available with 1, 2, and 3 doors – choose between hinged or sliding doors. To ensure that the backbar fits into any bar environment, it comes in two heights: 870 mm and 900 mm.
The new range of backbars is highly energy efficient and uses in average 59% less energy compared to the previous models from the same range.
| Gross / Net Weight | 69 / 63 kg |
| 40ft Container Load | 96 pcs |
| GTIN / EAN | 5708181721978 |
| Bottles 330 ml | 143 pcs |
| Bottles 500 ml PET | 143 pcs |
| Cans 330 ml | 276 pcs |
| Cans 500 ml | 188 pcs |
| Gross / Net Volume | 190 / 182 l |
| Total Display Area | 0.5 m² |
| Temperature Range | +2 to +10 °C |
| Climate Class | 4 |
| Exterior Finish | Black |
| Interior Finish | Stucco aluminium |
| Door No & Type | 2 hinged glass doors |
| Door Reversible | No |
| Shelves No & Type | 4 wire shelves chrome |
| Shelf Color | Chrome |
| Shelf Dimensions | 395×328 mm |
| Feet / Legs | 4 adjustable feet |
| Lock | Yes |
| Interior Light | LED |

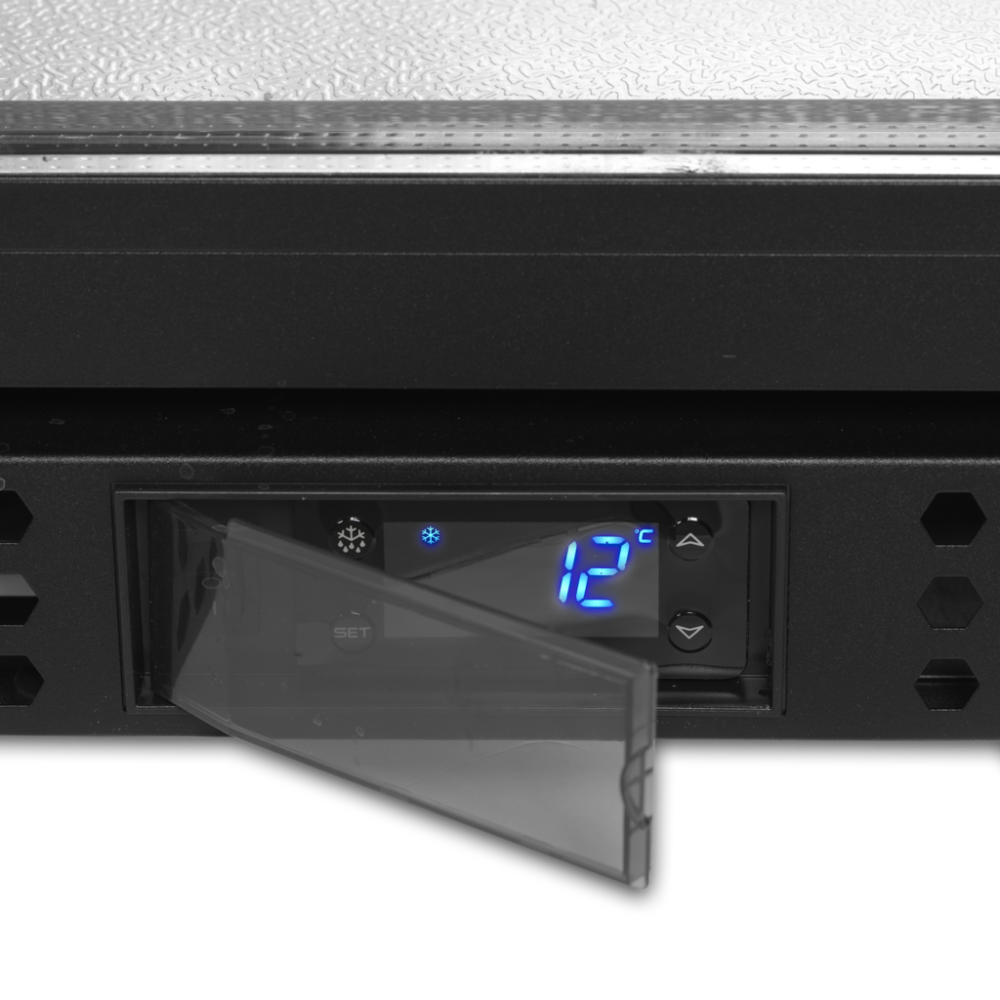

| Type of Controller | Electronic |
| Type of Cooling | Ventilated |
| Type of Defrost | Automatic |
| Refrigerant | R600a |
| Refrigerant Charge | 70 g |
| Thermometer | Yes |
| Energy Class | A |
| EPREL No | 1431563 |
| Max Ambient | +30°C, 55% RH |
| Energy Consumption | 1.08 kWh/24h |
| Annual Energy Cons. | 394 kWh/year |
| EEI | 9 % |
| Input Power | 115 W |
| Voltage / Frequency | 220-240/50 V/Hz |
| Noise Level | 44 dB(A) |
| External Dimension (WxDxH) | 900 x 520 x 870 mm |
| Internal Dimension (WxDxH) | 810 x 418 x 720 mm |
| Packed Dimension (WxDxH) | 985 x 575 x 940 mm |
