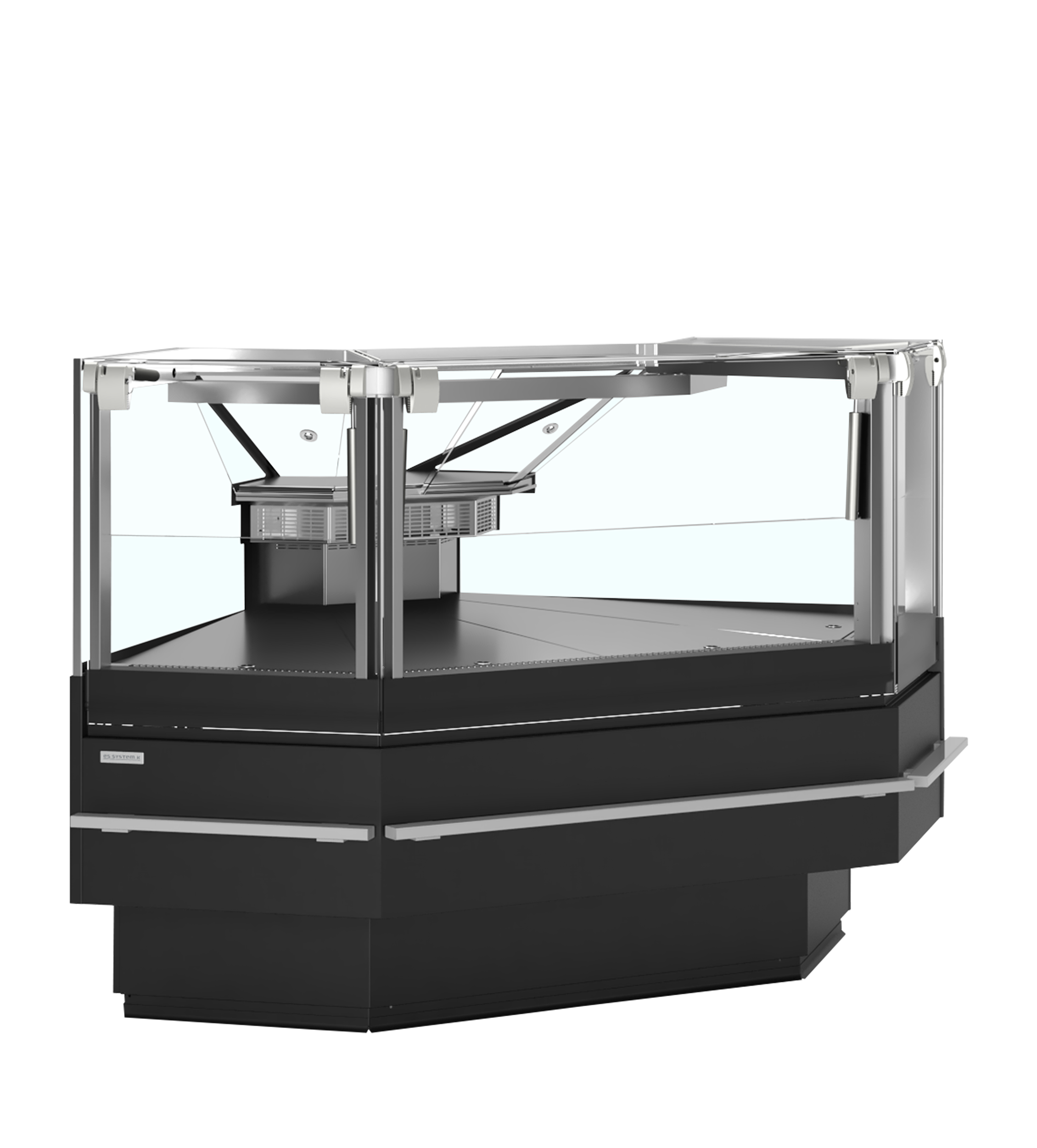

90° corner module for serve over counter
The SOC corner modules offer the opportunity of creating complete counter solutions in combination with other serve over counters from the same range. Choose between 45° or 90° counter displays for your perfect counter installation.
| Gross / Net Weight | 290 / 245 kg |
| 40ft Container Load | 8 pcs |
| GTIN / EAN | 5708181754167 |
| Gross / Net Volume | / 155 l |
| Total Display Area | 1.65 m² |
| Temperature Range | 0 to +4 °C |
| Climate Class | 3 |
| Insulation Density | 50 kg/m³ |
| Exterior Finish | Black RAL9005 |
| Interior Finish | Stainless Steel |
| Feet / Legs | Adjustable feet |
| Interior Light | LED |

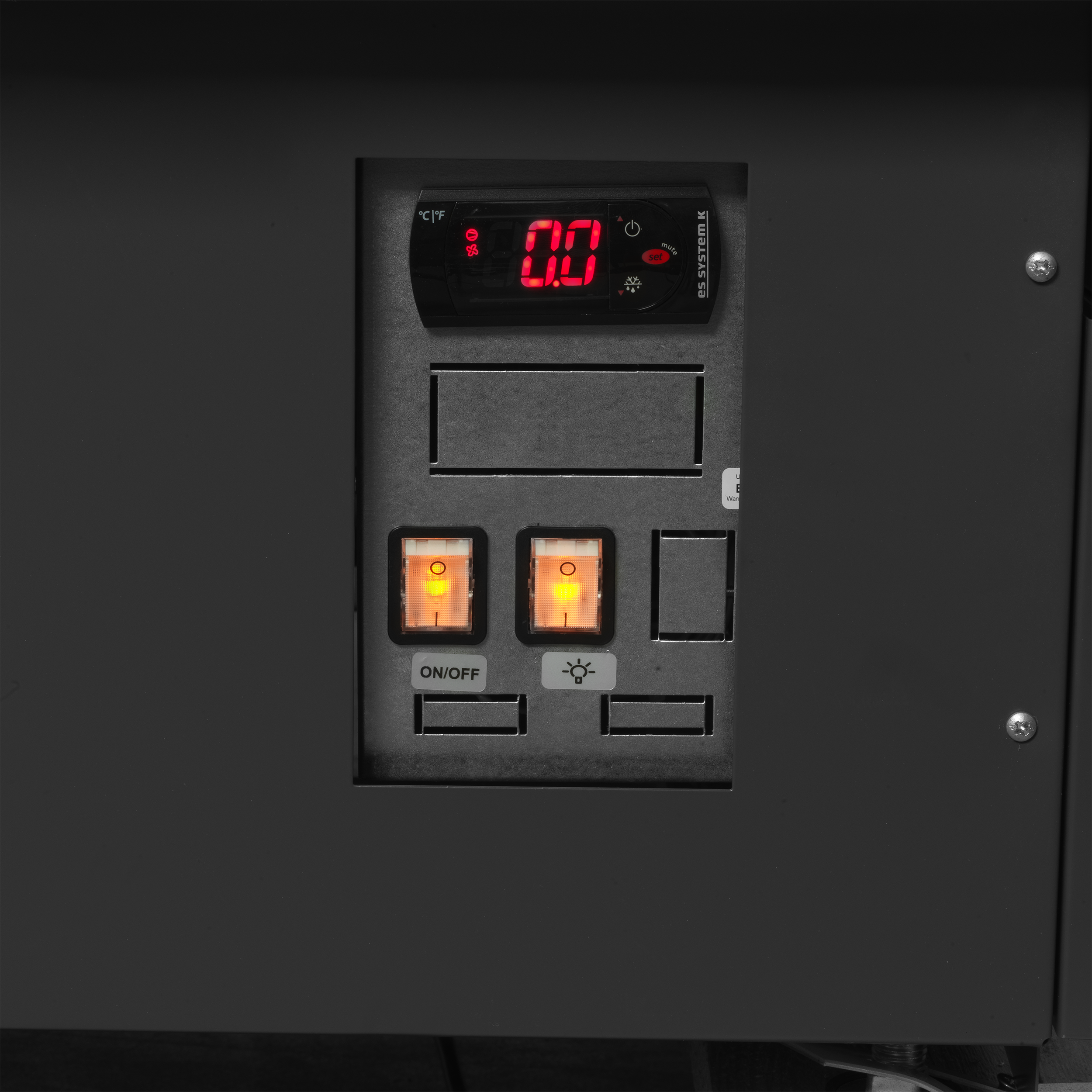

| Type of Controller | Electronic |
| Type of Cooling | Ventilated |
| Type of Defrost | Automatic, electric |
| Refrigerant | R290 |
| Refrigerant Charge | 150 g |
| Thermometer | Yes |
| Max Ambient | +25°C, 60% RH |
| Energy Consumption | 5.98 kWh/24h |
| Annual Energy Cons. | 2182.7 kWh/year |
| Input Power | 530 W |
| Voltage / Frequency | 220-240/50 V/Hz |
| Noise Level | 60 dB(A) |
| External Dimension (WxDxH) | x 1120 x 1190 mm |
| Internal Dimension (WxDxH) | x 900 x 545 mm |
| Packed Dimension (WxDxH) | 1500 x 1450 x 1400 mm |
