GN3/1 Uni-Drawer

UD1-3

(16544)

  • Easily switchable between cooler and freezer
  • Maximized storage space
  • Ventilated cooling for fast pull-down and even temperature
  • Automatic defrost
  • Impressive storage space
  • Maximum load capacity per drawer: 60 kg
  • Maximum load capacity of table top: 240 kg

Toimitus: 1-14 päivää.

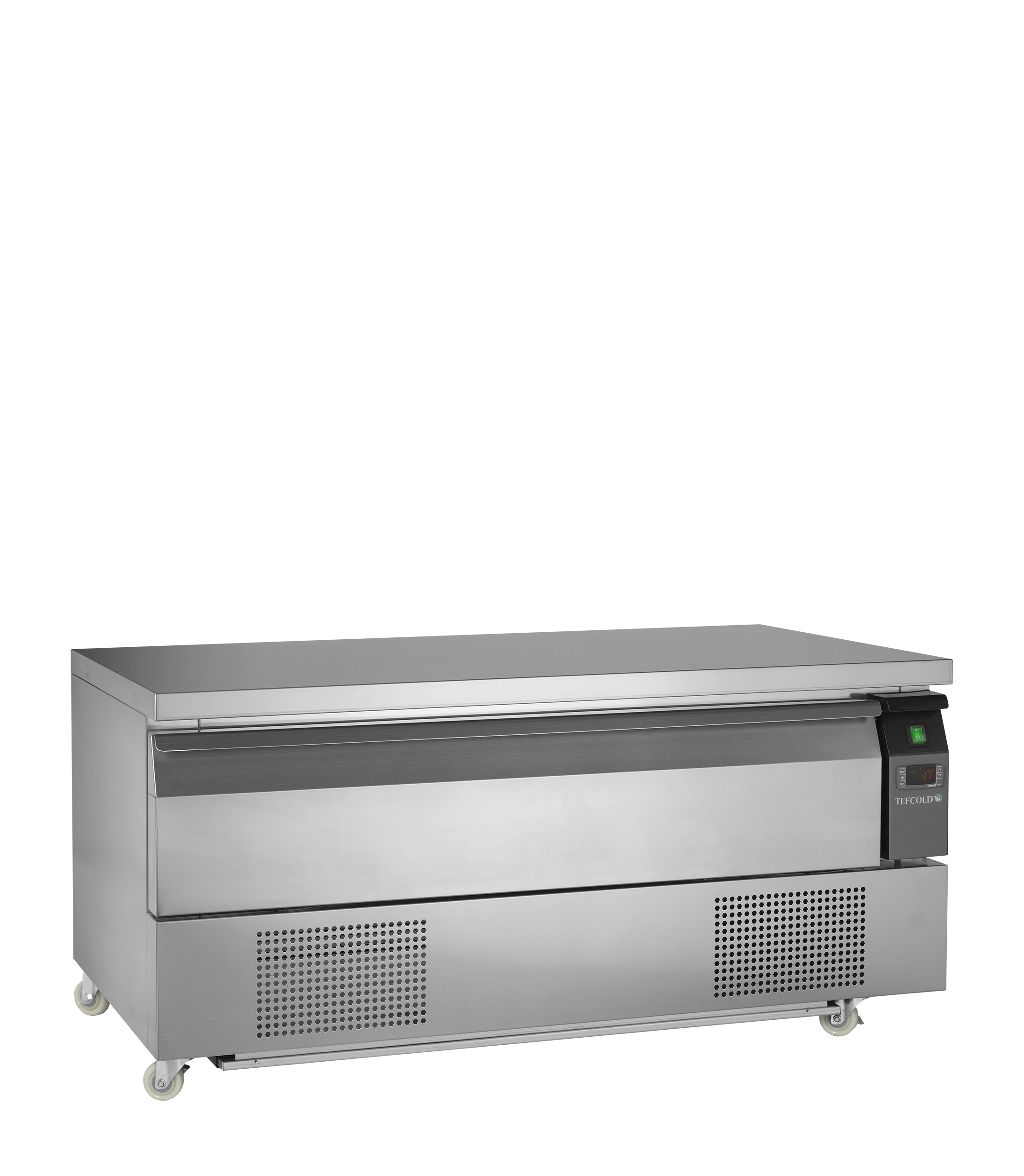

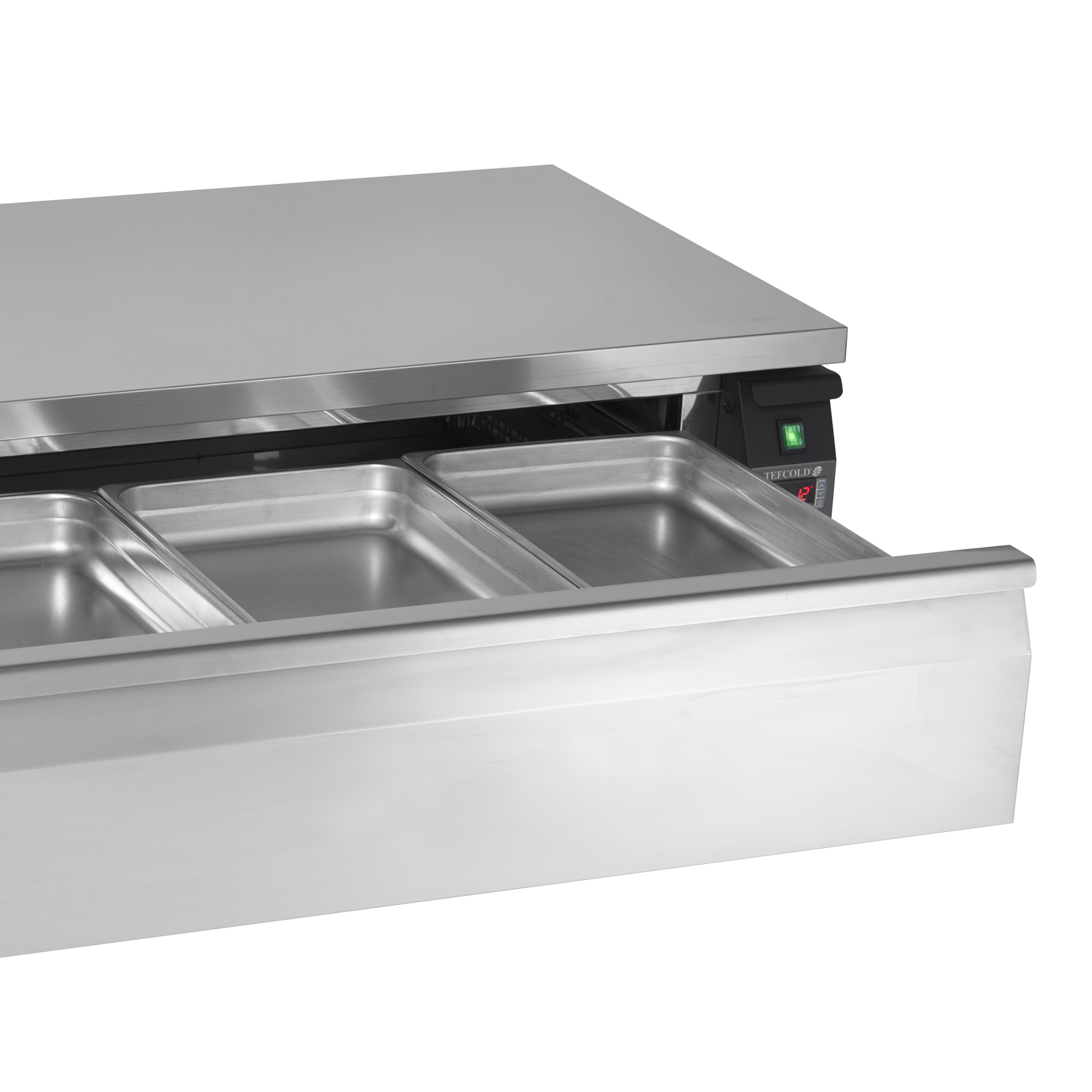

The UD range of uni-drawers offers a flexible solution, where you can switch the drawers individually from cooling to freezing at the touch of a button. This is perfect when space is limited. Temperature range can be set from -21 to -18 degrees, or +1 to +4 degrees. It is available in two different widths, with 1 or 2 drawers. They are all dimensioned for GN canteens up to 150 mm deep. The top plate is designed to be able to withstand heavy appliances, such as deep fryers, ovens and the like.



Temperature Range -21 to -18 /+ 1 to +4 °C
Climate Class 5
Gross / Net Weight 105 / 90 kg
Gross / Net Volume 116 / 77 l
Capacity GN Pans 3 pcs
Castors 4 wheels, 2 with brake
Exterior Finish SS304
Interior Finish SS304
Drawers 1 pcs
Type of Controller Electronic
Type of Cooling Ventilated
Type of Defrost Automatic
Refrigerant R290
Refrigerant Charge 70 g
Thermometer Yes
EEI Vol 77 l
Energy Class E
Energy Consumption 6.05 kWh/24h
Annual Energy Cons. 2208 kWh/year
Input Power 270 W
Voltage / Frequency 220-240/50 V/Hz
Noise Level 54 dB(A)
Internal Dimension (WxDxH) 1000 x 565 x 205 mm
External Dimension (WxDxH) 1230 x 700 x 600 mm
Packed Dimension (WxDxH) 1310 x 770 x 740 mm
40ft Container Load 72 pcs
