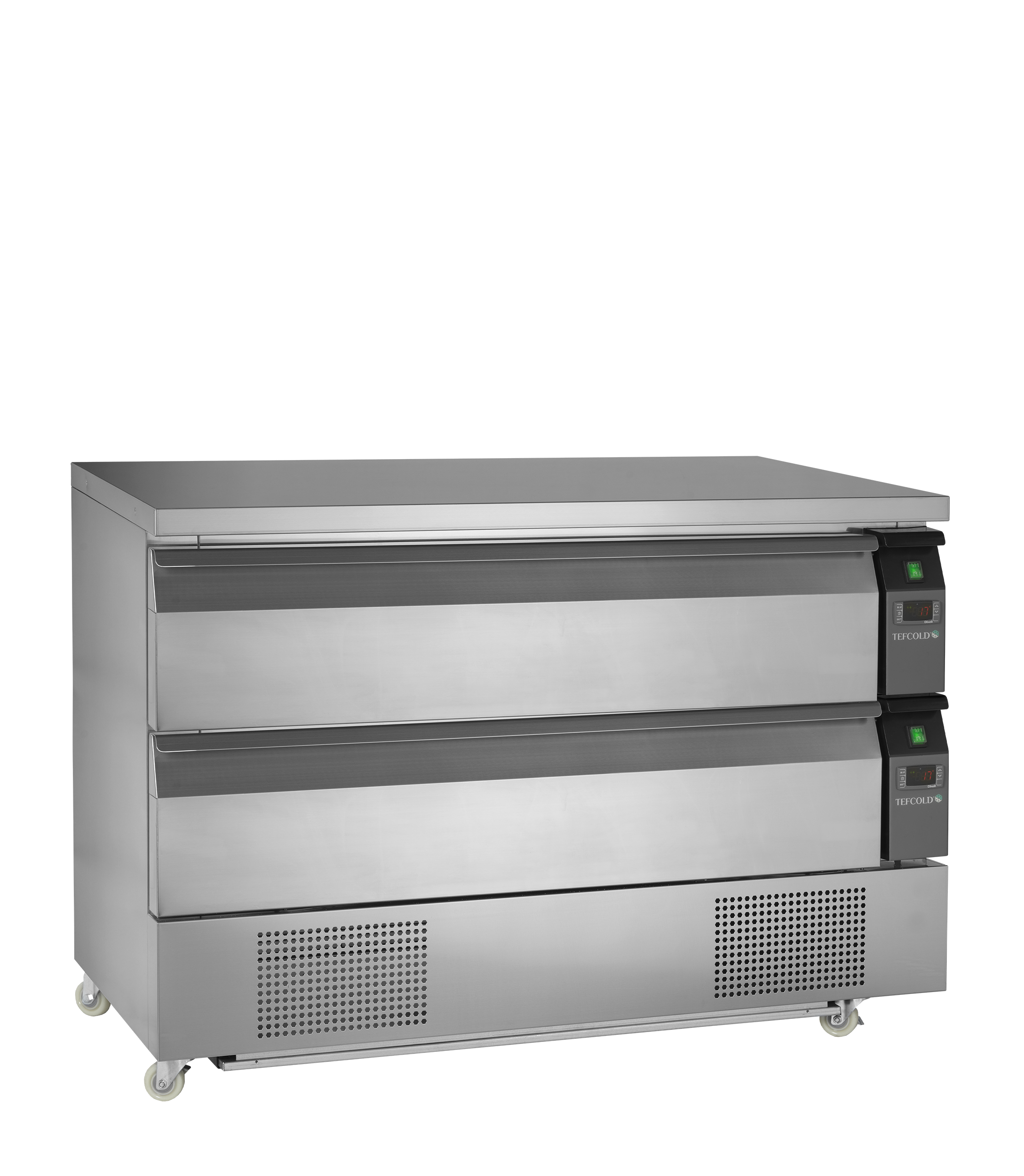

GN3/1 Uni-Drawer



  • Two drawers individually switchable cooling/freezing
  • Easily switchable between cooler and freezer
  • Maximized storage space
  • Ventilated cooling for fast pull-down and even temperature
  • Automatic defrost
  • Impressive storage space
  • Maximum load capacity per drawer: 60 kg
  • Maximum load capacity of table top: 240 kg

Toimitus: 1-14 päivää.


The UD range of uni-drawers offers a flexible solution, where you can switch the drawers individually from cooling to freezing at the touch of a button. This is perfect when space is limited. Temperature range can be set from -21 to -18 degrees, or +1 to +4 degrees. It is available in two different widths, with 1 or 2 drawers. They are all dimensioned for GN canteens up to 150 mm deep. The top plate is designed to be able to withstand heavy appliances, such as deep fryers, ovens and the like.


Temperature Range -21 to -18 /+ 1 to +4 °C
Climate Class 5
Gross / Net Weight 154 / 131 kg
Gross / Net Volume 265 / 154 l
Capacity GN Pans 6 pcs
Castors 4 wheels, 2 with brake
Exterior Finish SS304
Interior Finish SS304
Drawers 2 pcs
Type of Controller Electronic
Type of Cooling Ventilated
Type of Defrost Automatic
Refrigerant R290
Refrigerant Charge 140 g
Thermometer Yes
Energy Consumption 3.88 kWh/24h
Annual Energy Cons. 1416 kWh/year
Input Power 540 W
Voltage / Frequency 220-240/50 V/Hz
Noise Level 54 dB(A)
Internal Dimension, Zone 2 (WxDxH) DELETE x x mm
Internal Dimension (WxDxH) 1000 x 565 x 470 mm
External Dimension (WxDxH) 1230 x 700 x 865 mm
Packed Dimension (WxDxH) 1310 x 770 x 1000 mm
40ft Container Load 48 pcs
