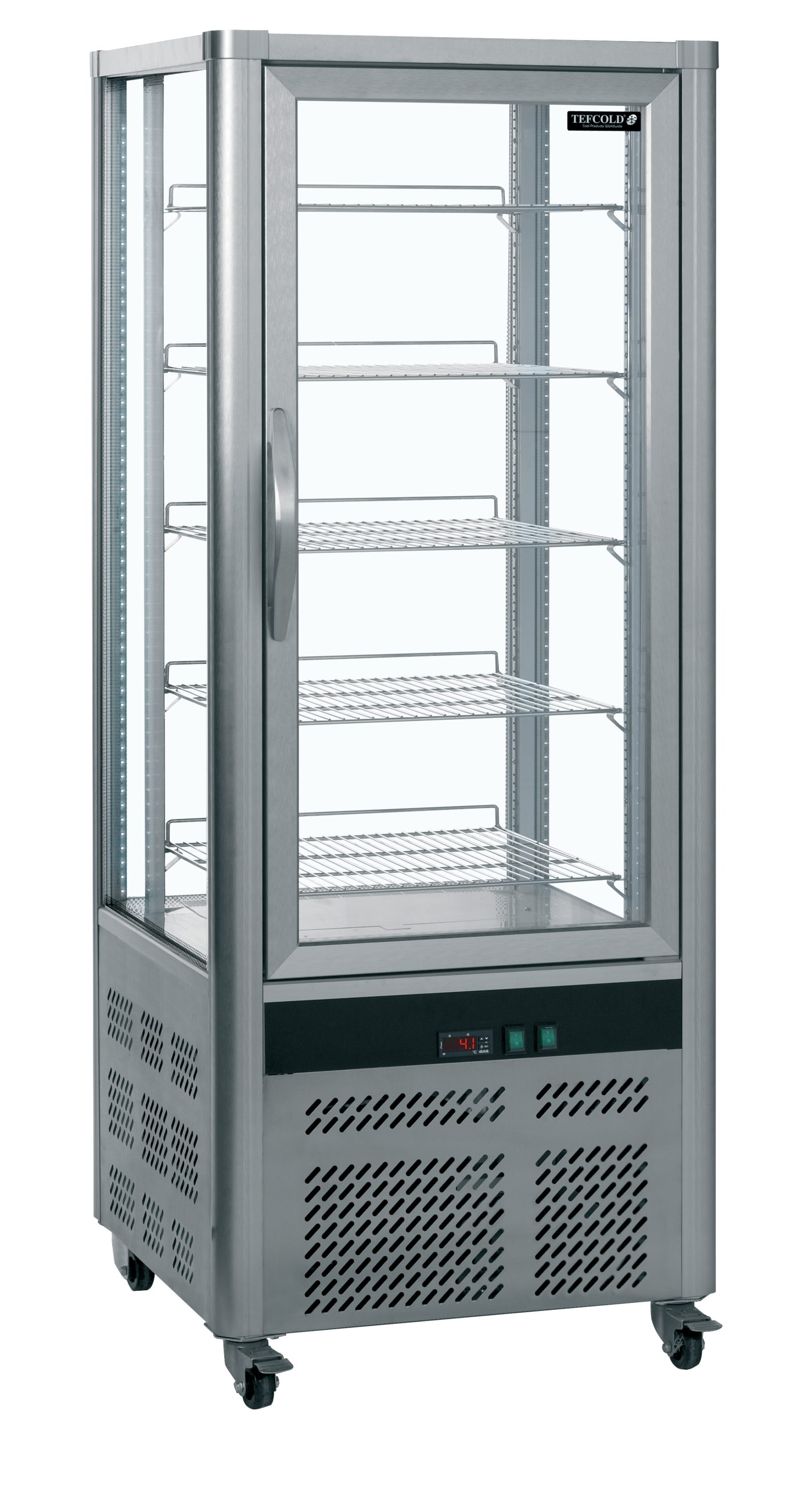

Vertical refrigerated glass display
The UPD range of refrigerated display cases has a vertical design with double glazed glass on all four sides. It comes with adjustable wire shelves for flexibility. LED lighting illuminates the content, while a ventilated cooling system keeps it cool and fresh. The UPD range comes in several sizes and finishes to meet any need.
| Gross / Net Weight | 160 / 140 kg |
| 40ft Container Load | 45 pcs |
| GTIN / EAN | 5708181361716 |
| Gross / Net Volume | 468 / 425 l |
| Temperature Range | +2 to +12 °C |
| Exterior Finish | Aluminium / SS304 |
| Interior Finish | Aluminium / SS304 |
| Door No & Type | 1 hinged glass door |
| Door Reversible | No |

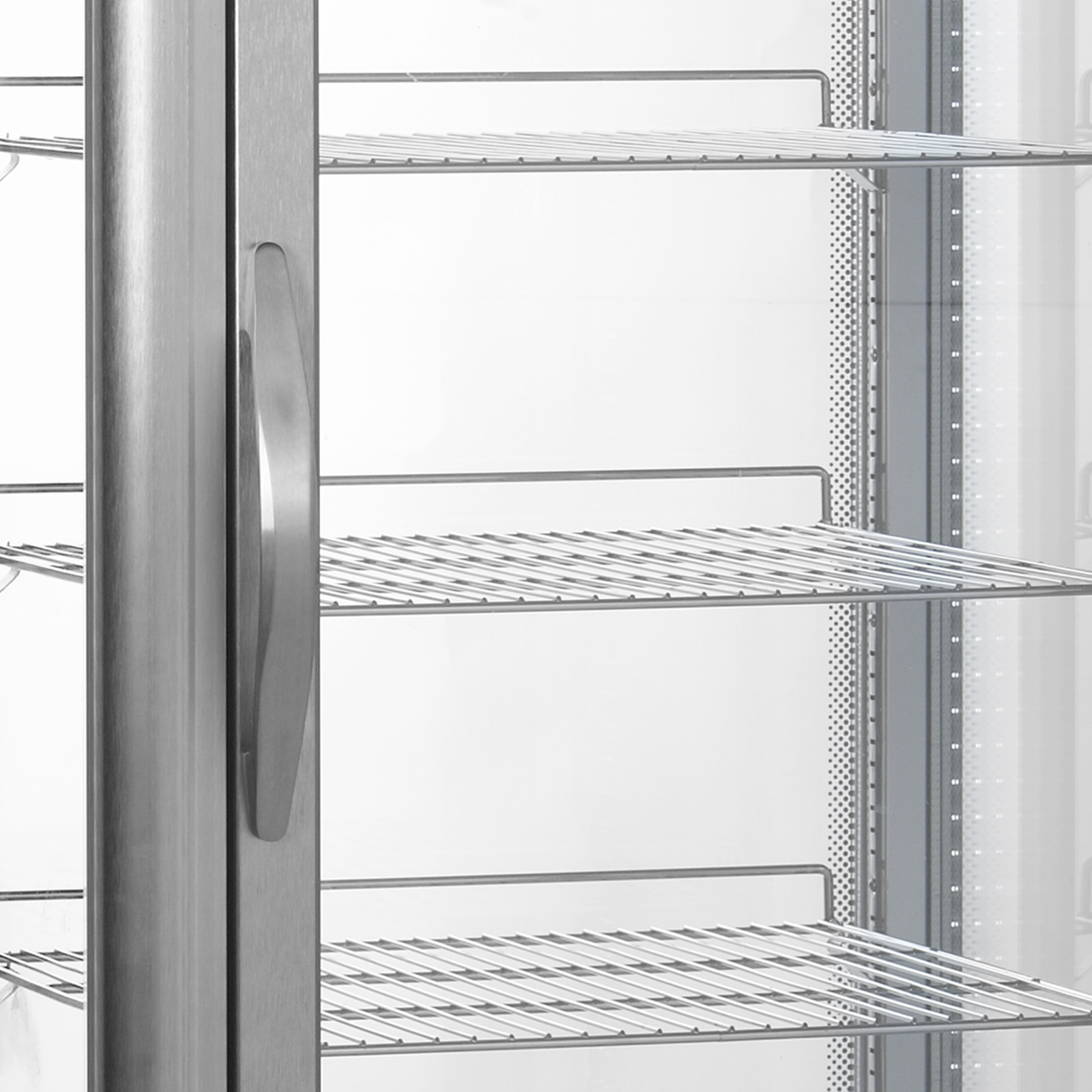

| Shelves No & Type | 5 wire shelves |
| Shelf Dimensions | 511*486 |
| Max load on Shelves | 72.48 kg/m² |
| Type of Controller | Electronic |
| Type of Defrost | Automatic |
| Refrigerant | R290 |
| Refrigerant Charge | 130 g |
| Input Power | 255 W |
| Voltage / Frequency | 220-240/50 V/Hz |
| Noise Level | 46 dB(A) |
| External Dimension (WxDxH) | 706 x 706 x 1800 mm |
| Internal Dimension (WxDxH) | 638 x 638 x 1180 mm |
| Packed Dimension (WxDxH) | 760 x 820 x 1930 mm |
| Total Display Area | 2.29 m² |
| Climate Class | 4 |
| Shelf Color | Stainless steel |

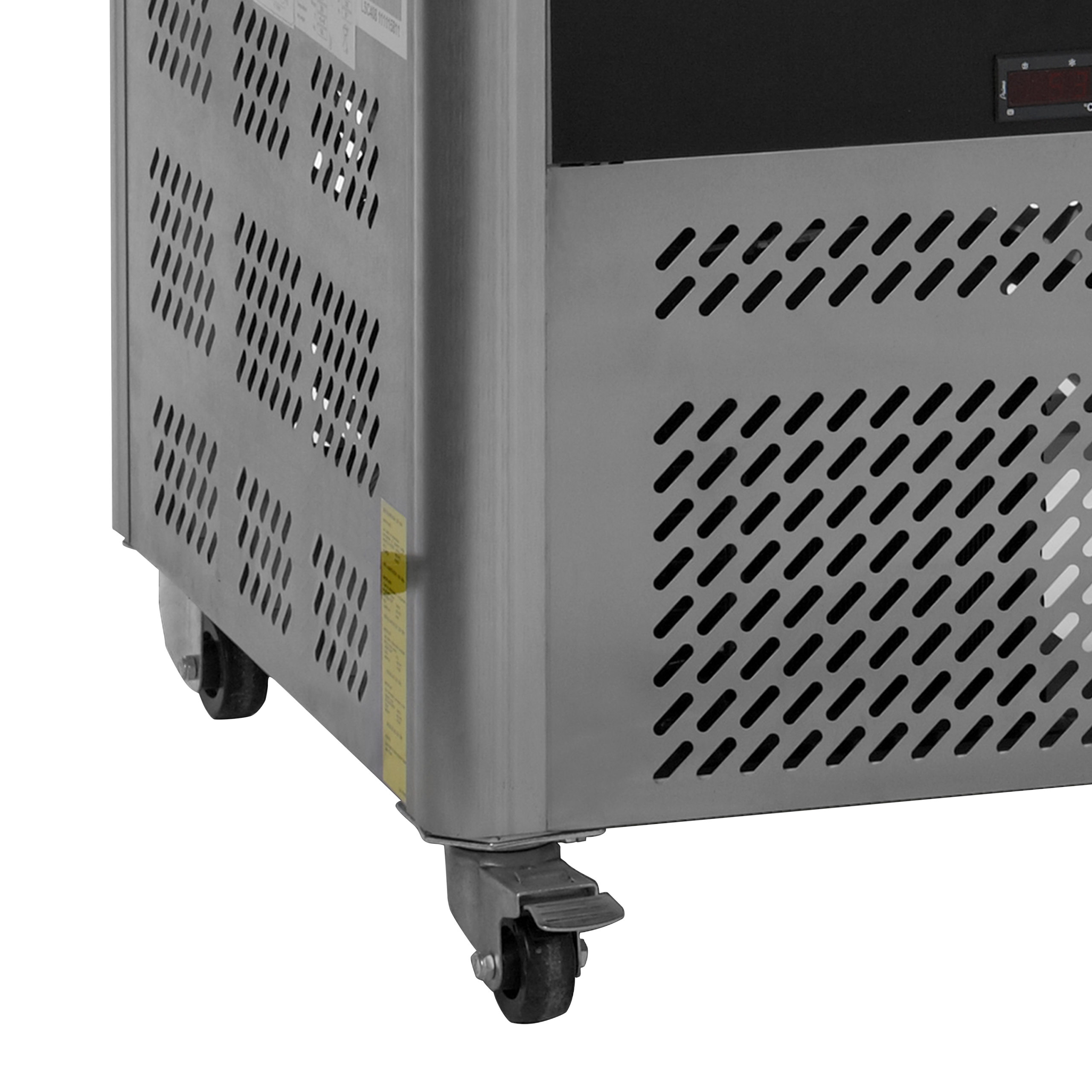

| Castors | 4 wheels, 2 with brake |
| Interior Light | LED |
| Thermometer | Yes |
| Energy Class | B |
| EPREL No | 494291 |
| Energy Consumption | 4.99 kWh/24h |
| Annual Energy Cons. | 1822 kWh/year |
| EEI | 18.5 % |
