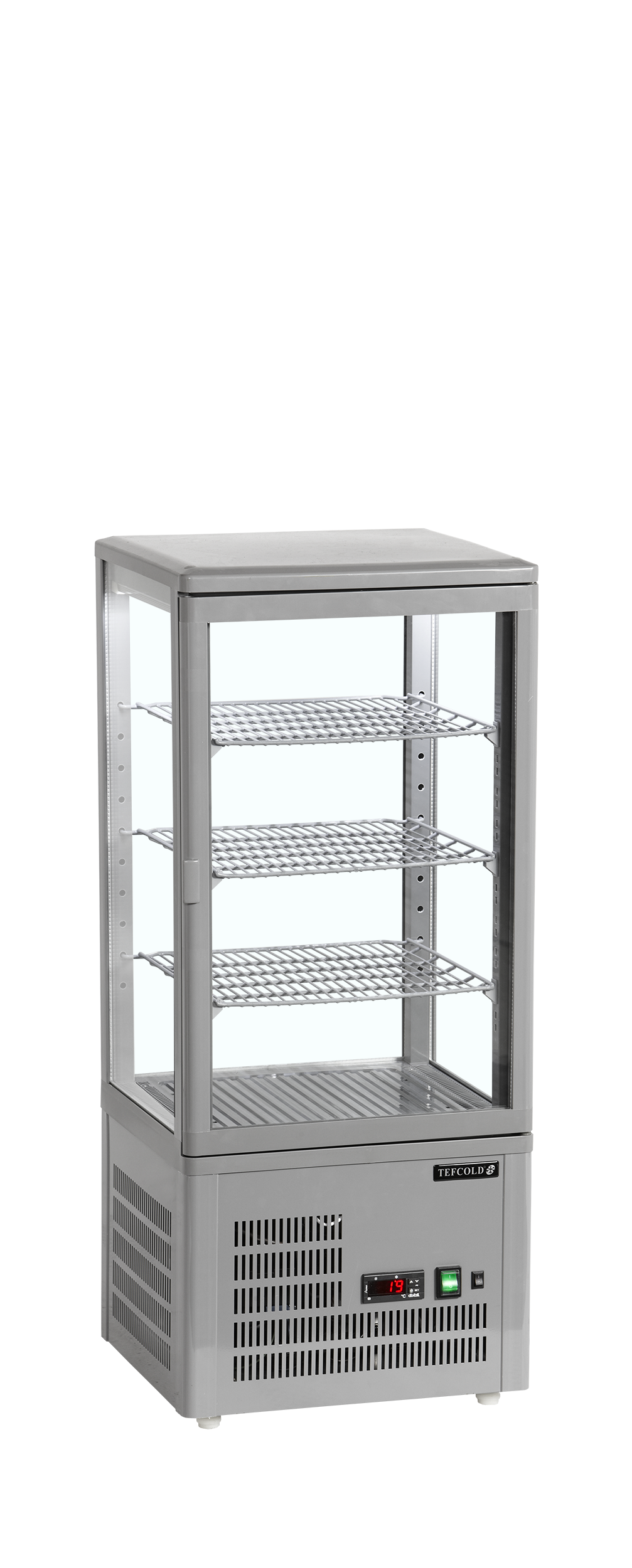

Refrigerated glass display countertop for display and storage

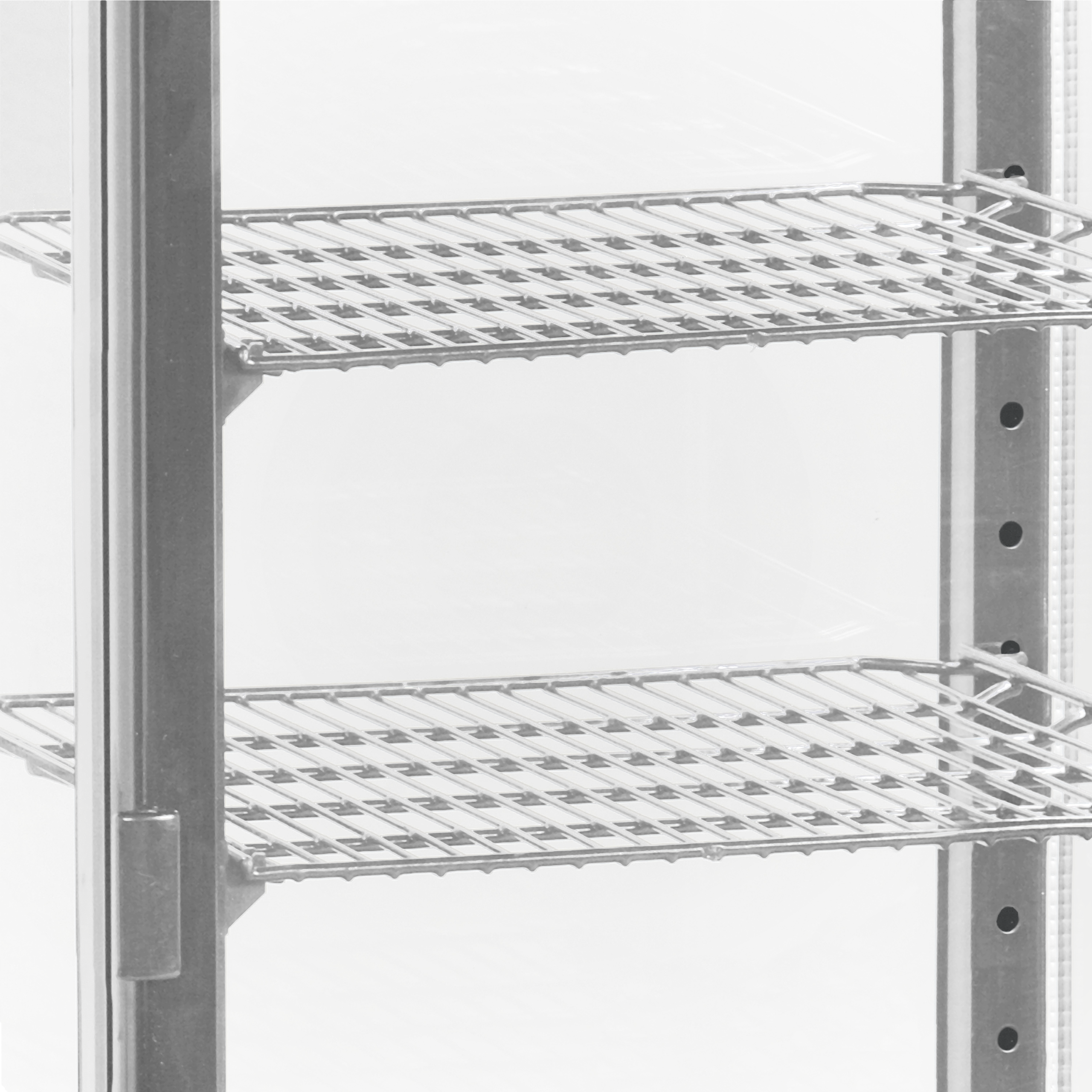

The UPD range of refrigerated display cases has a vertical design with double glazed glass on all four sides. It comes with adjustable wire shelves for flexibility. LED lighting illuminates the content, while a ventilated cooling system keeps it cool and fresh. The UPD range comes in several sizes and finishes to meet any need.
| Gross / Net Weight | 46 / 41 kg |
| 40ft Container Load | 230 pcs |
| GTIN / EAN | 5708181302771 |
| Gross / Net Volume | 80 / 78 l |
| Temperature Range | +2 to +12 °C |
| Exterior Finish | Grey finish, ABS |
| Interior Finish | Grey finish, ABS |
| Door No & Type | 1 hinged glass door |
| Shelves No & Type | 3 wire shelves grey |
| Feet / Legs | 4 adjustable feet |

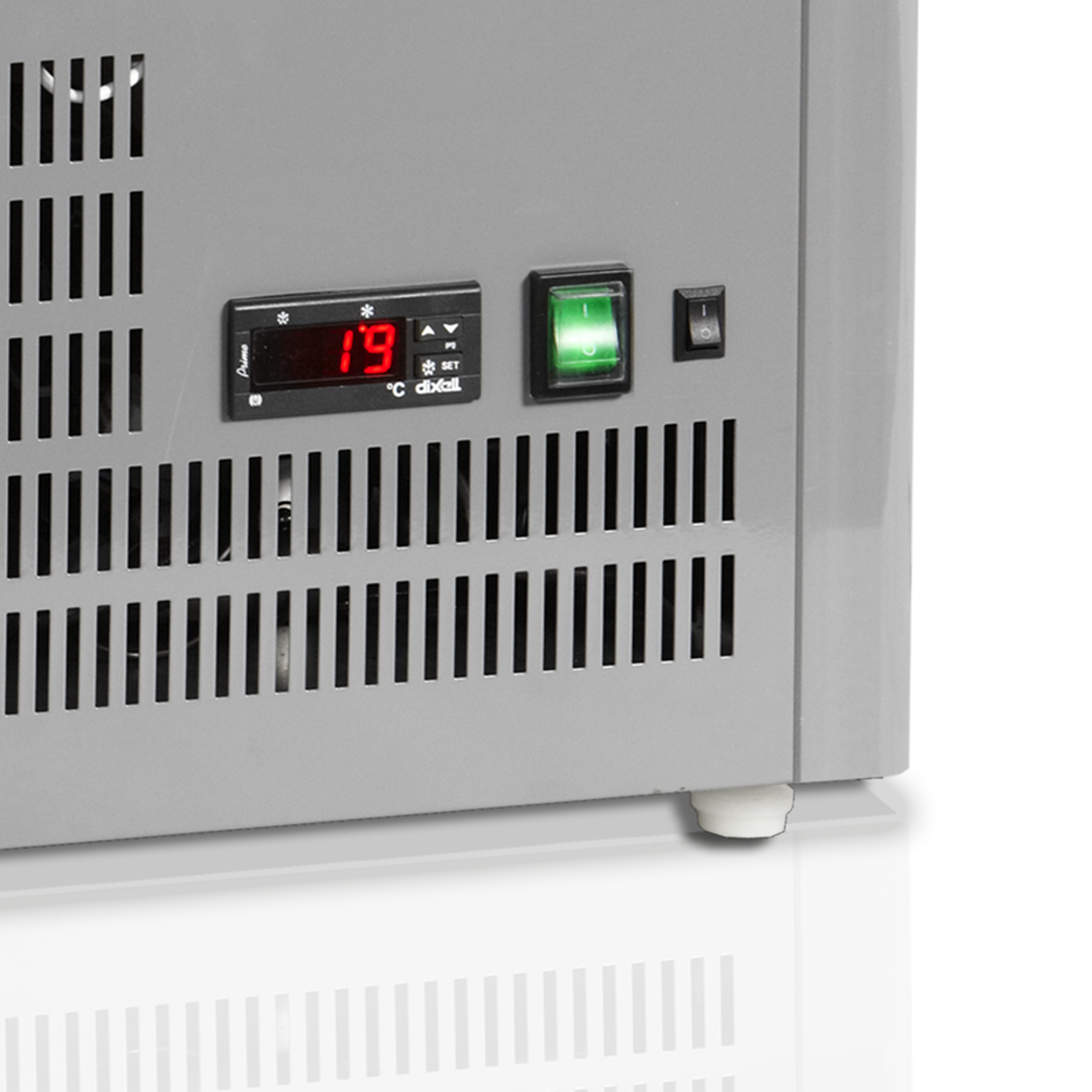

| Type of Controller | Electronic |
| Type of Defrost | Automatic |
| Refrigerant | R600a |
| Refrigerant Charge | 40 g |
| Input Power | 184 W |
| Voltage / Frequency | 220-240/50 V/Hz |
| Noise Level | 42 dB(A) |
| External Dimension (WxDxH) | 428 x 386 x 1000 mm |
| Internal Dimension (WxDxH) | 400 x 358 x 610 mm |
| Packed Dimension (WxDxH) | 500 x 450 x 1045 mm |
| Total Display Area | 0.76 m² |
| Climate Class | 4 |
| Shelf Color | Grey |
| Interior Light | LED |
| Thermometer | Yes |
| Energy Class | C |
| EPREL No | 543892 |
| Energy Consumption | 3.75 kWh/24h |
| Annual Energy Cons. | 1369 kWh/year |
| EEI | 25.9 % |
